Elios 3 Remote controller stick calibration

The Elios 3 remote controller sticks are factory calibrated, meaning calibration is normally not required. However, the calibration procedure can be performed if needed to troubleshoot specific control issues.

When Calibration May Be Needed :

• Difficulties to make the arming or disarming sequence

• Gimbal sticks or camera tilt knob do not reach their full range of control on the aircraft

Required Material

Charged Remote controller

Procedure

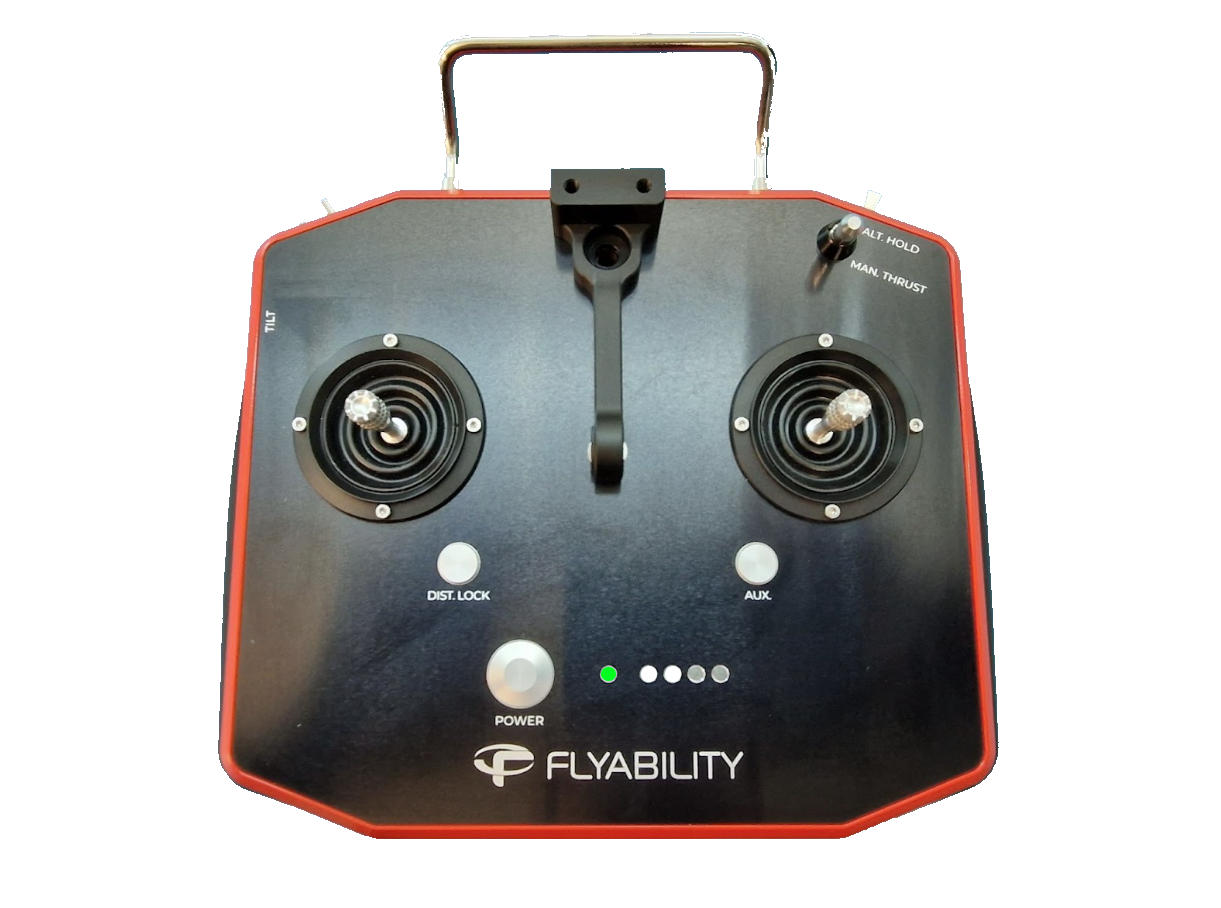

1. Power on the remote controller.

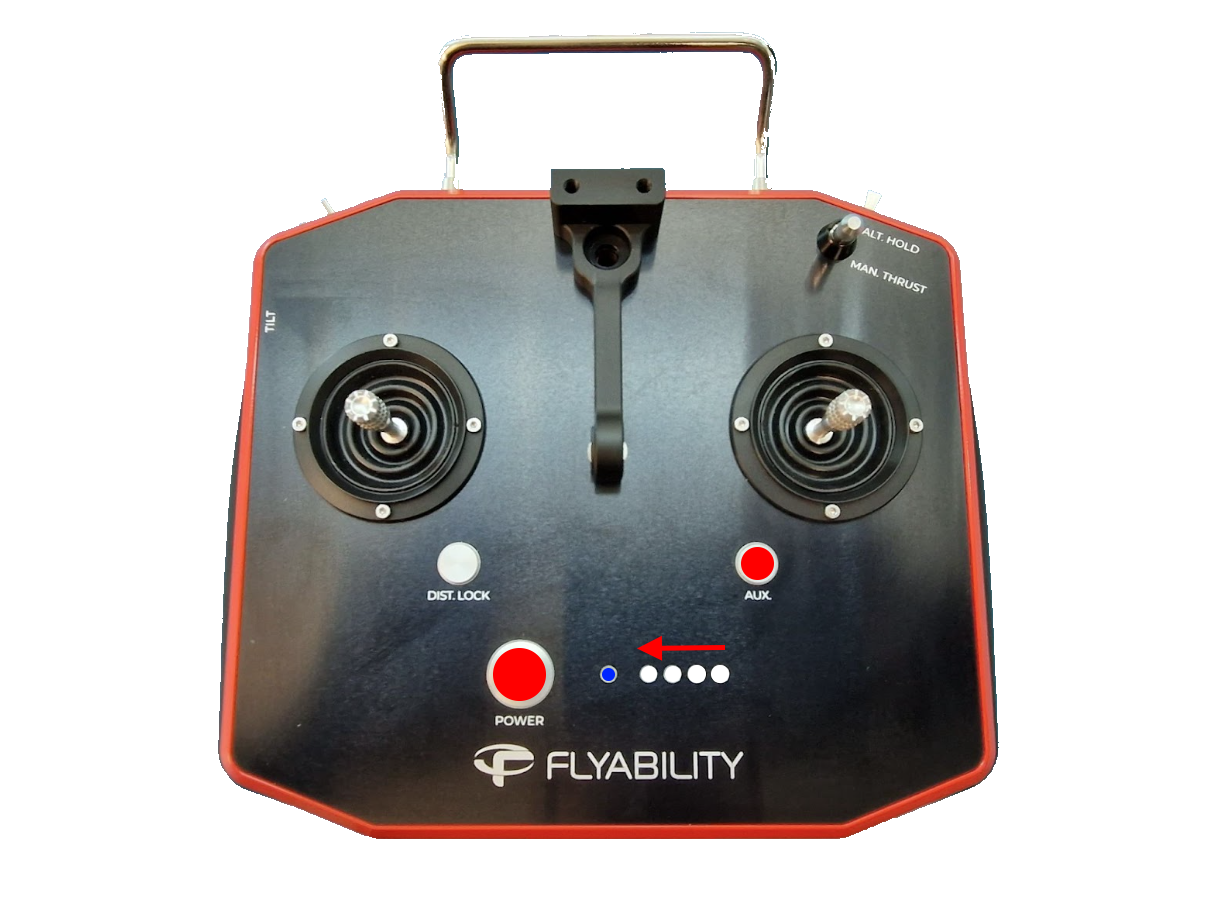

1. Press simultaneously and keep pressed the Power and Aux buttons, until the power led turn blue and a beep is heard.

1. Move the left stick up, down, left and right all the range, repeat 3 times, the second led of the battery level indicator will blink. Leave the stick in the center the led should stay fixed.

1. Move the right stick up, down, left and right all the range, repeat 3 times, the third led of the battery level indicator will blink leave the stick in the center the led should stay fixed.

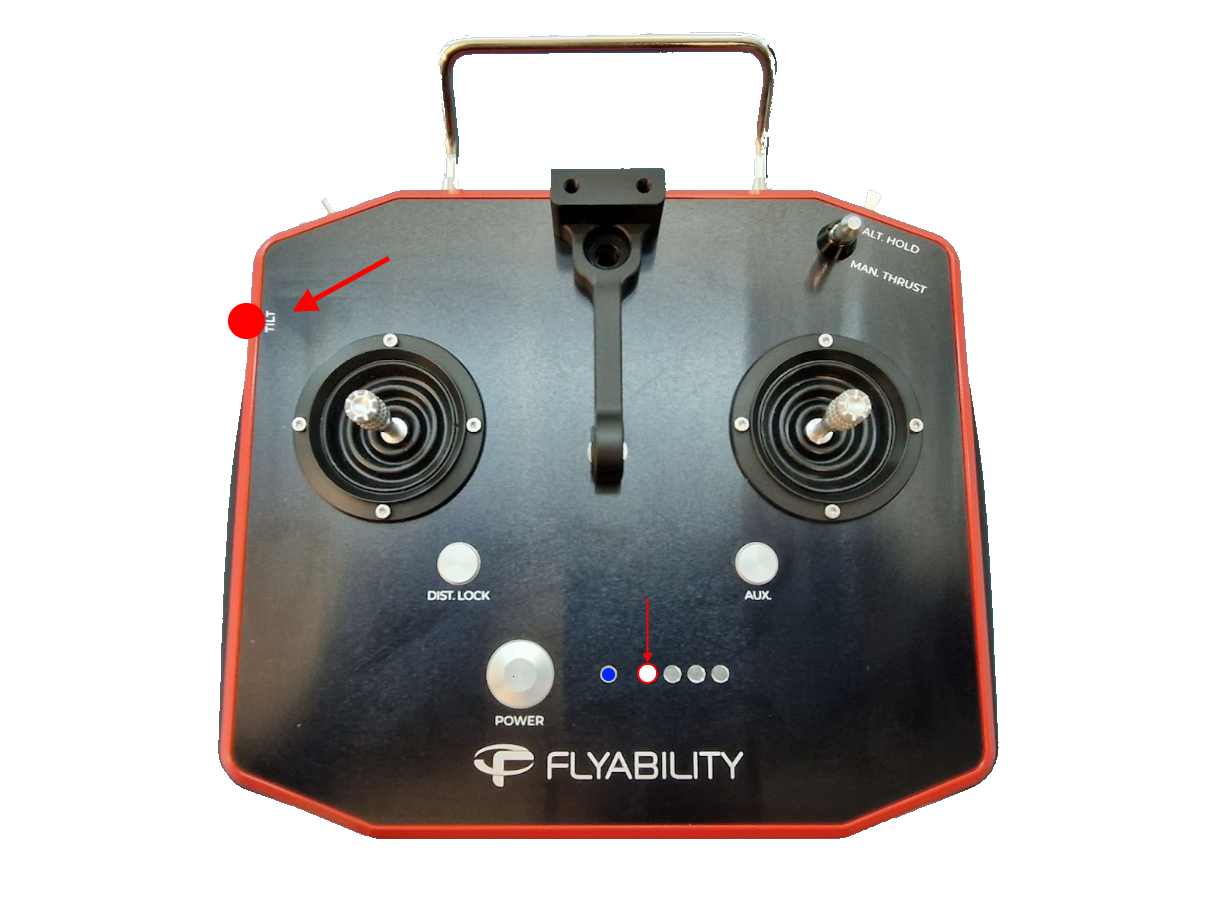

1. Move the camera tilt knob up and down all the range, repeat 3 times, the first led of the battery level indicator will blink, place the knob in the horizontal position, the led should stay fixed.

1. Leave the remote control for 5s without moving any sticks or knob, the blue power led will start to blink, wait an additional 3 seconds

2. Power off to save the new calibration
